Large Scale Extraction Units
Industrial-scale extraction with vacuum-assisted concentration
Our Large Scale Extraction Units
Key Features
End-to-End Extraction, Elevated

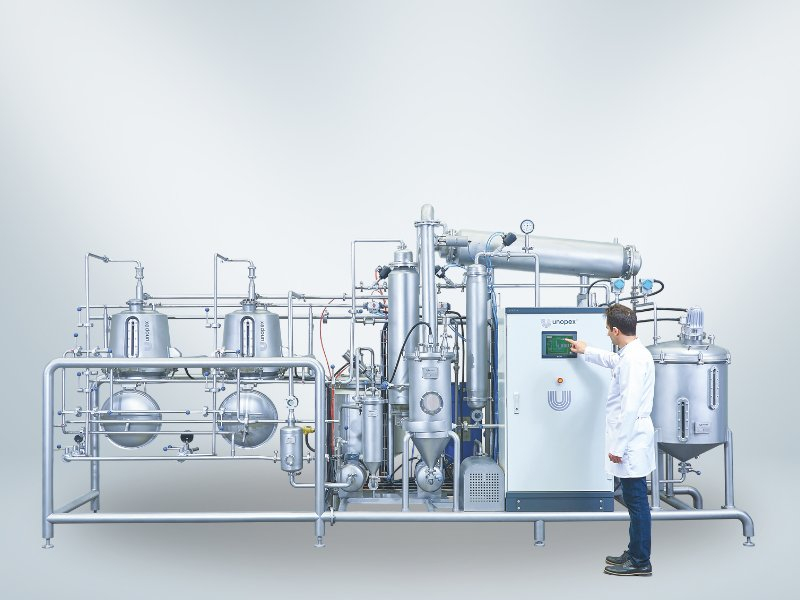

The Unopex E 50 Extraction Unit is engineered for industrial and pilot-scale operations requiring high-throughput solid-liquid extraction with solvent recovery. Ideal for natural extracts, essential oils, active agents, and oleoresins, it combines powerful performance with user-friendly automation.
Its integrated falling film evaporator and filtration unit ensure continuous processing with high product clarity, minimal waste, and full solvent utilization—making it a smart investment for production-grade facilities.
Industrial Performance with Smart Control
Built from AISI 316L stainless steel, the E 50 handles both water-based and organic solvents, with real-time monitoring through a touchscreen HMI and PLC-based control system. It delivers:
- 300 L extractor volume
- Optional dual 50 L solvent tanks
- Vacuum-assisted residue removal
- Full CE compliance and ATEX-ready options
Looking to scale up your extraction process? Let’s talk about configuring your Unopex E 50 solution.
Contact Form
Technical Specifications
- Model: Unopex E 50
- Extractor Volume: 300 liters
- Evaporator Type: Falling film evaporator
- Solvent Tank Capacity: 1×50 L or 2×50 L (optional)
- Max. Temperature: 120 °C
- Pressure Range: -1 / +6 bar
- Control Panel: PLC + HMI touchscreen
- Dimensions: 3500 × 1600 × H3250 mm
- Voltage: 3×400 V, 50 Hz
- Gaskets: PTFE, EPDM
- Materials: AISI 316, 316L, 316Ti, 304
- Solvent Compatibility: Water and organic solvents
Engineered for High Extraction Yields
The Unopex E 50 delivers rapid, high-quality extraction through bidirectional solvent circulation and optimized raw material contact. Its vacuum-assisted discharge minimizes downtime, while multi-stage configurations are available for advanced applications.
Broad Industry Applications
Designed to meet the demands of pharmaceutical, nutraceutical, cosmetic, and food sectors, this large-scale extractor supports various botanical inputs such as leaves, roots, seeds, and fruits. It’s also suitable for aroma compounds, colorants, and active ingredient isolation.
Data Logging & Process Traceability
With integrated PLC and HMI systems, users can monitor key parameters (temperature, pressure, solvent flow) in real-time and save batch data for quality control, compliance, and validation purposes.
Global Standards, Local Expertise
As with all Unopex systems, the E 50 is CE-certified and supports ATEX compliance. Our modular designs are trusted across continents and backed by remote and on-site support from our global service team.
Need a high-capacity solution for complex extractions?
Partner with Unopex to access industrial-strength extraction and concentration systems tailored to your operational goals.
