Flow Pack Packaging Machines

Wrap biscuits, bars, wafers, bakery items and other products in sealed, airtight packs at up to 700 packs per minute. ProTrus horizontal flow pack machines combine servo drives, touchscreen controls and inline feeding, from entry-level lines to high-speed confectionery plants.

Get a Quote Compare Machines

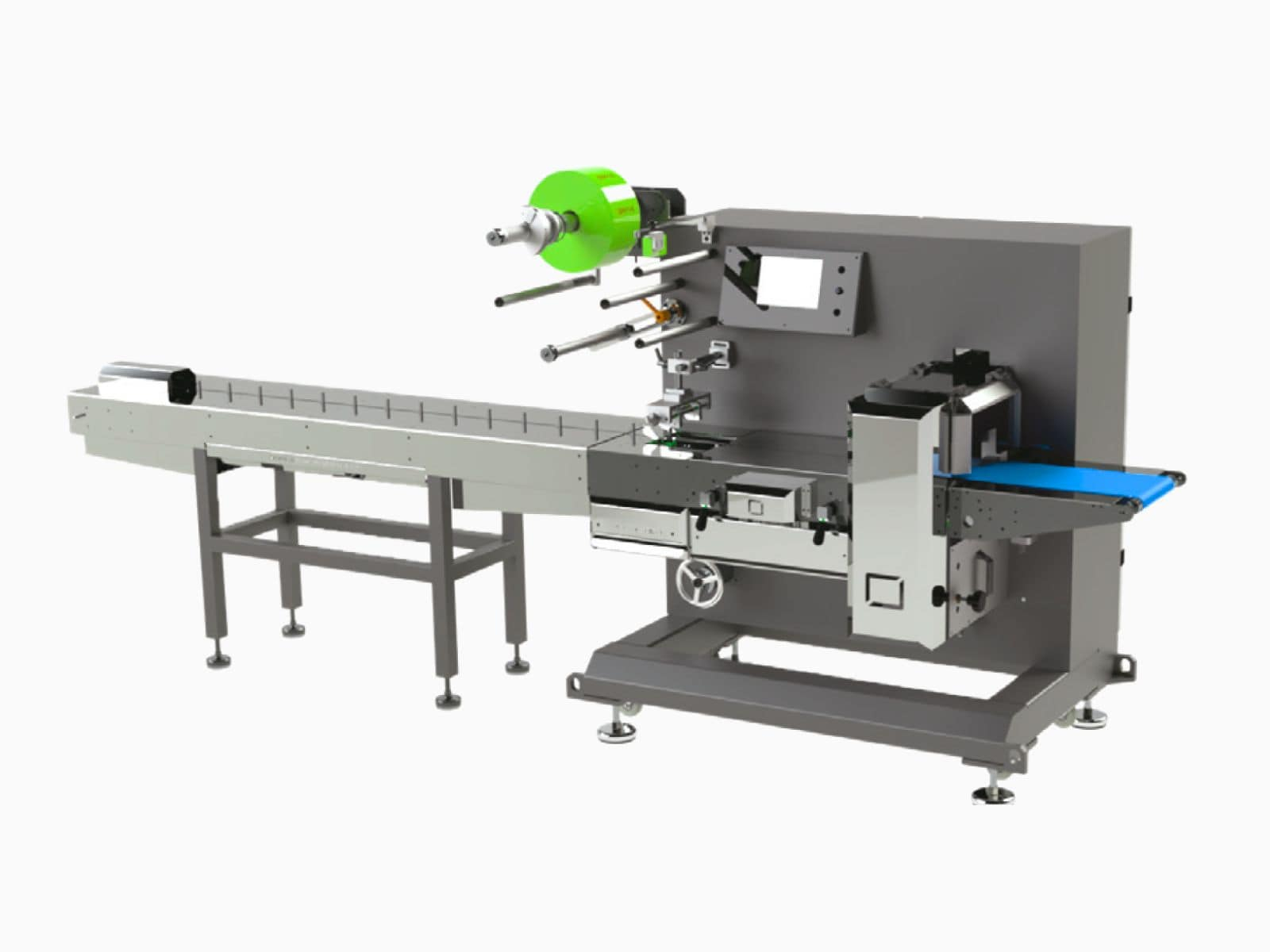

Horizontal flow pack machine with inline feeding conveyor, film reel and sealing jaws

Horizontal flow pack machine · inline feeding, film wrapping, sealing and cutting

Speed

Up to 700 packs per minute

Machines

Nine horizontal models plus ADS feeding

Film width

From 300 up to 600 mm

Control

Servo drives, touchscreen HMI

How a Horizontal Flow Pack Machine Works

A flow pack machine, also called a flow wrapper, moves products in line along a conveyor, wraps them in a tube of film, seals the back and both ends, and cuts each pack free. Because the product travels straight into the wrapper, handling stays minimal and the pack arrives airtight, hygienic and easy to stack.

Feeding

Products arrive by manual feeding, a 90-degree semi-automatic system, magazine feeding or a fully inline conveyor.

Wrapping

Film is drawn from the reel and formed into a tube around the product.

Sealing

A back seal and two end seals close the pack, using cold seal or hot seal film.

Cutting

The cutting and sealing group separates each pack and discharges it to the next stage.

Horizontal Flow Pack Machines for Every Production Scale

Pick the machine by product size, film width and speed. E-motion models suit entry-level and short-run production, Silver machines serve industrial lines, and Titan runs high-speed confectionery.

Family 01 · E-motion

E-motion Flow Pack Machines: MFX, RSI, PMJ and Plus

The E-motion family is built for companies with limited or specialized product lines. Choose one servo motor or full servo control, manual feeding or a 90-degree semi-automatic feeding system, and an intuitive touchscreen HMI.

MFX: up to 250 packs per minute, film up to 350 mm

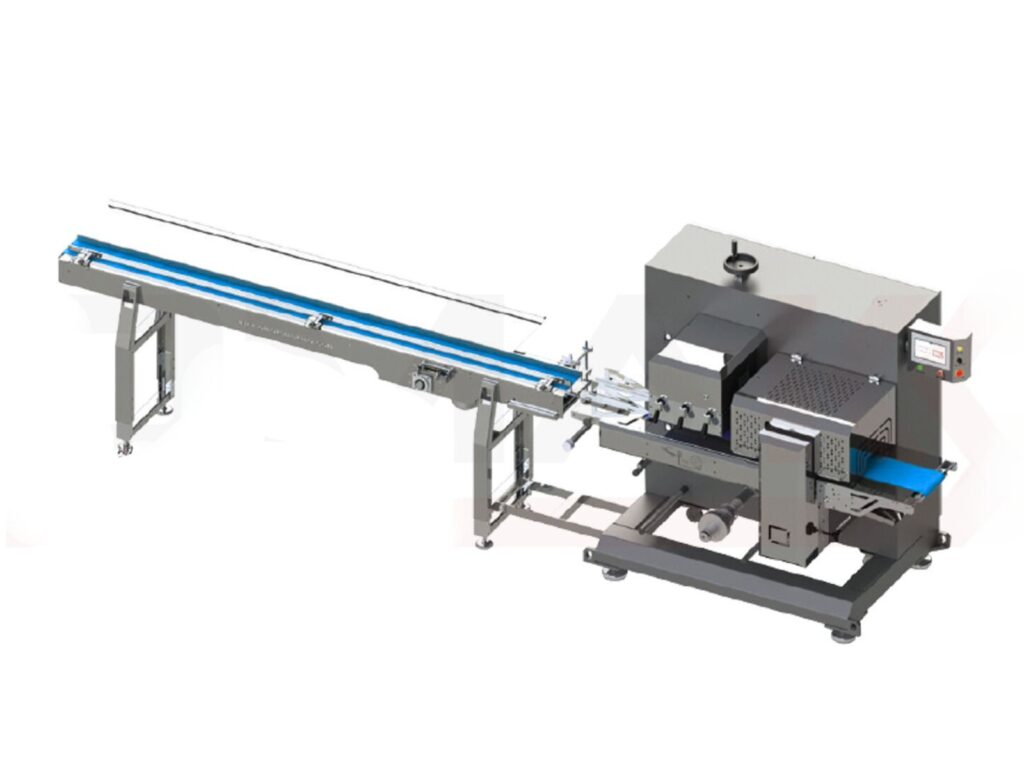

RSI: odd shapes, plastic cutlery and light products

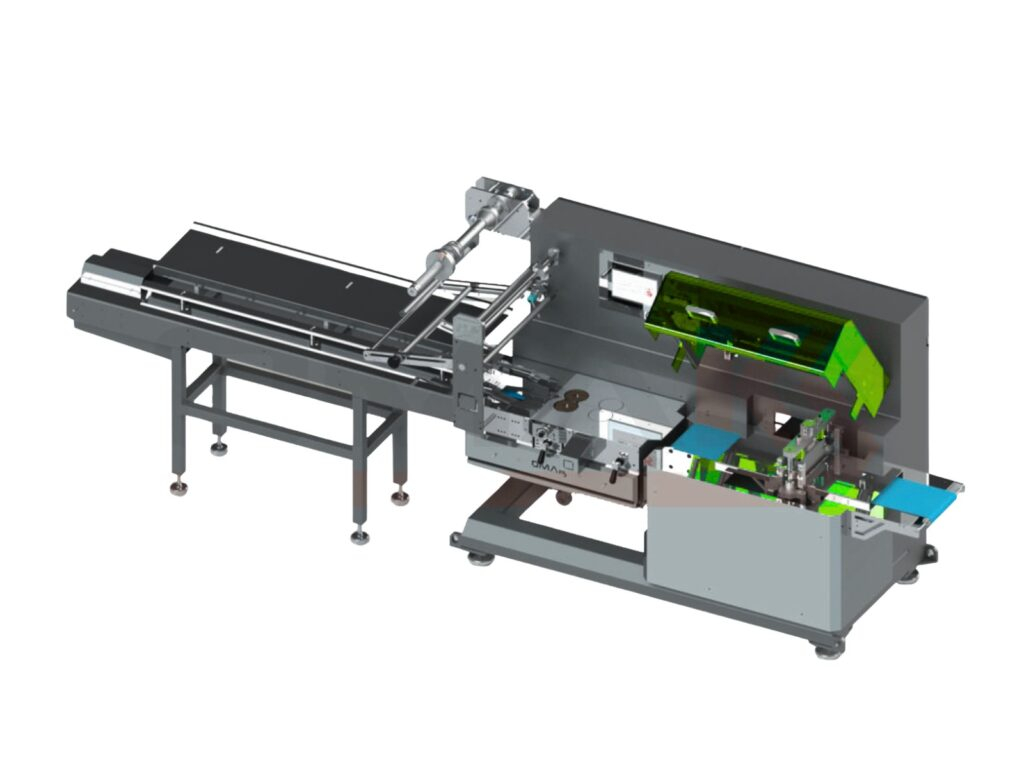

PMJ: mobile jaws for larger products, film up to 600 mm

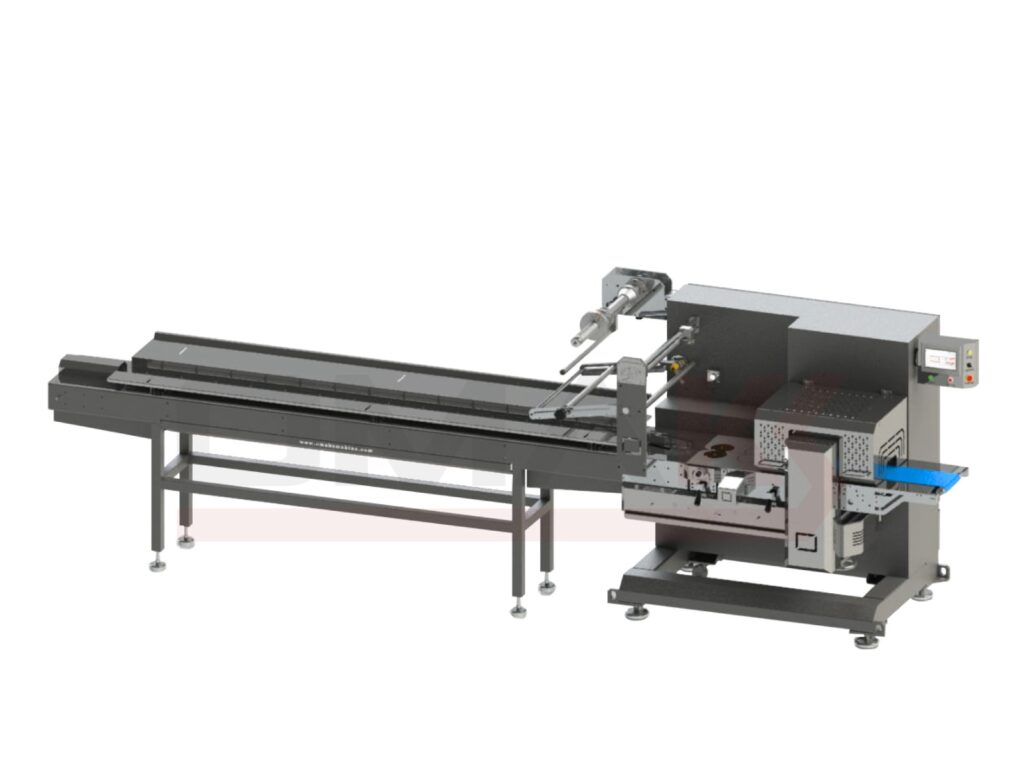

Plus: wide products, film up to 550 mm

E-motion MFX horizontal flow pack machine with feeding conveyor and film reel

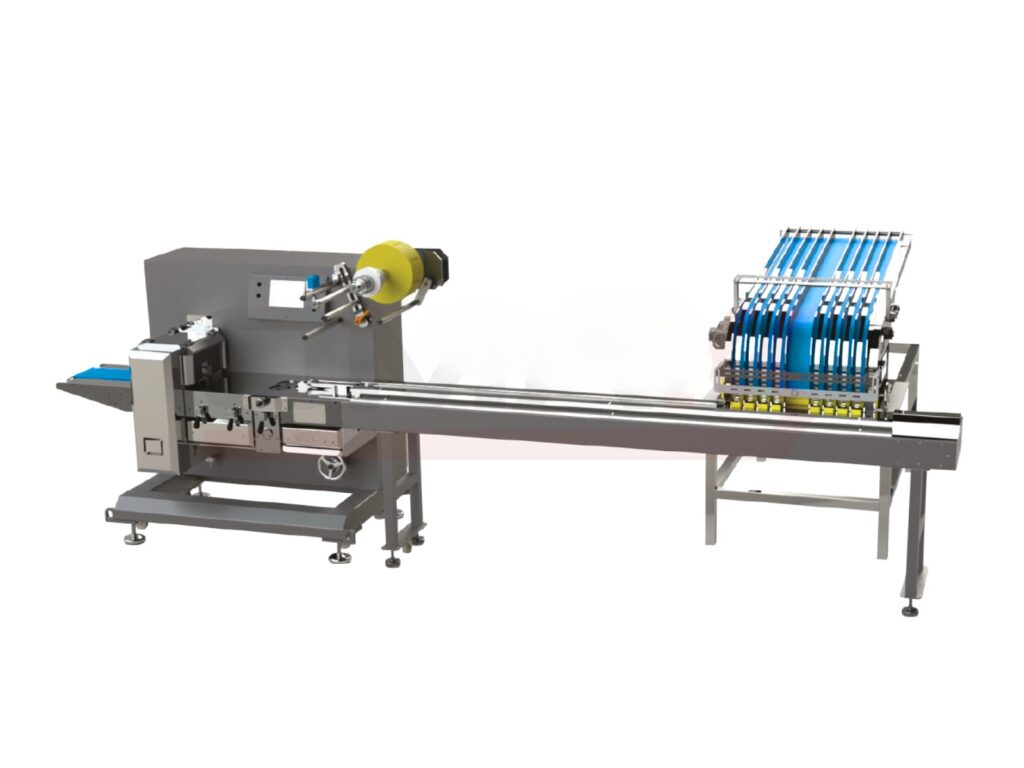

E-motion flow pack machine with magazine feeding system for biscuits

Family 02 · Biscuit feeding

E-motion Magazine Feeding for Biscuits

Magazine feeding units load biscuits and similar products from stacked magazines and pack them in square, round or oval formats with semi-automatic feeding.

Magazine feeding system with pusher and feeding conveyor
Up to 120 packs per minute, cold or hot seal
Film width up to 350 mm, reel up to 340 mm
Disk group and cutting and sealing group

Family 03 · Silver

Silver Flow Pack Machines

Silver machines are engineered for industrial horizontal packaging with customizable packaging ratios and a 10-inch touchscreen HMI. An inline feeding conveyor packs products without direct handling, which improves hygiene and efficiency.

Silver: up to 400 packs per minute, film up to 400 mm

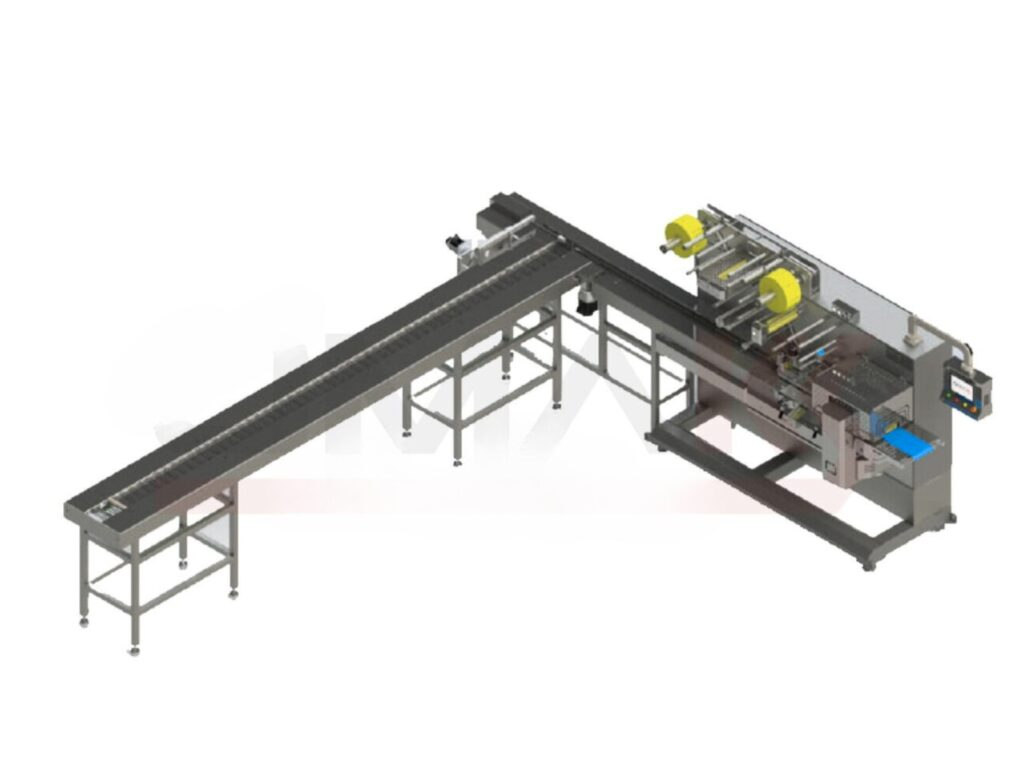

Silver On Edge: 80–120 packs per minute with 90-degree feeding

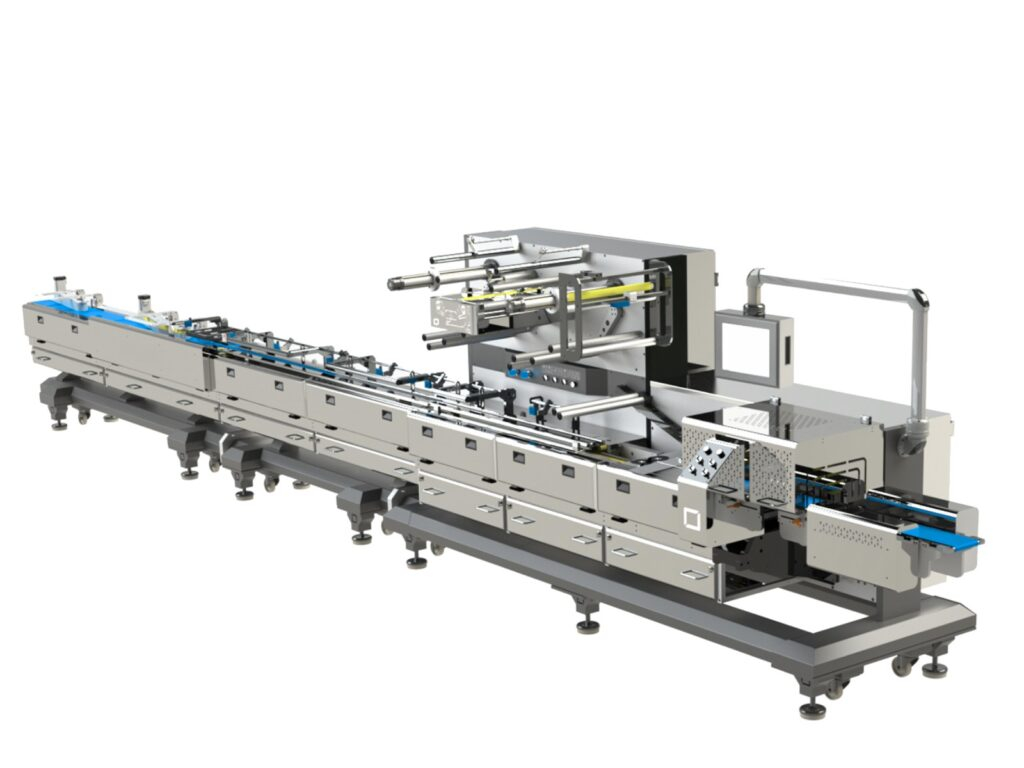

Silver Pile Pack: twin-line stacks of biscuits up to 75 mm in diameter and 30 mm high
Compatible with automatic feeding systems such as ADS

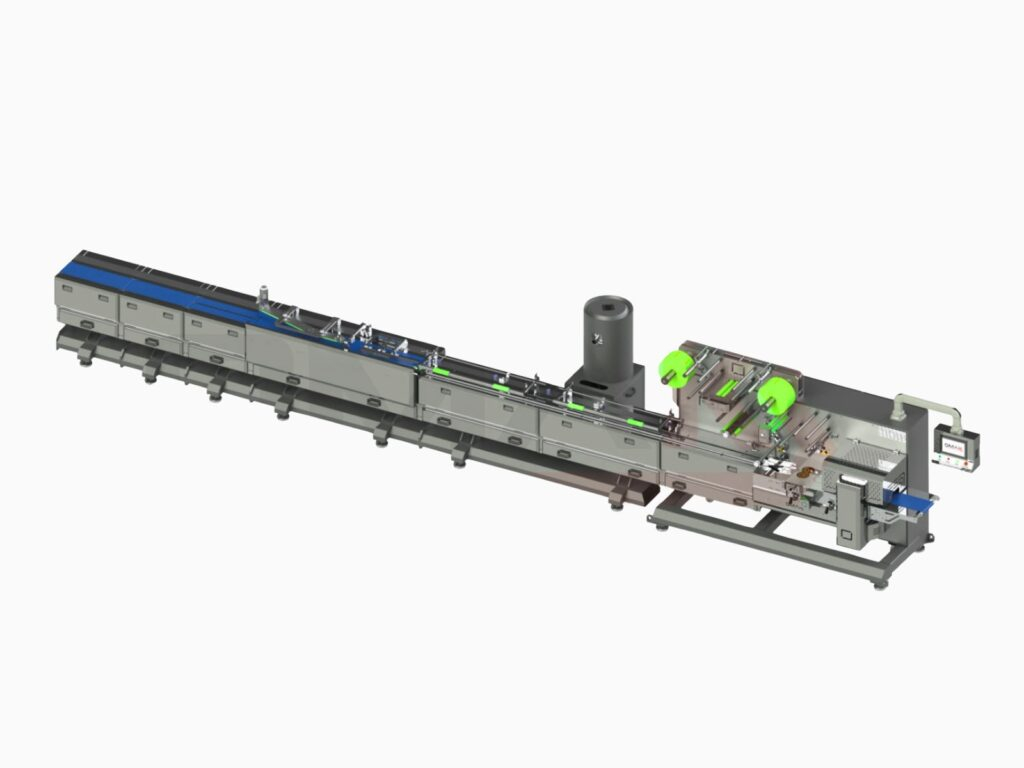

Silver horizontal flow pack machine with inline feeding conveyor

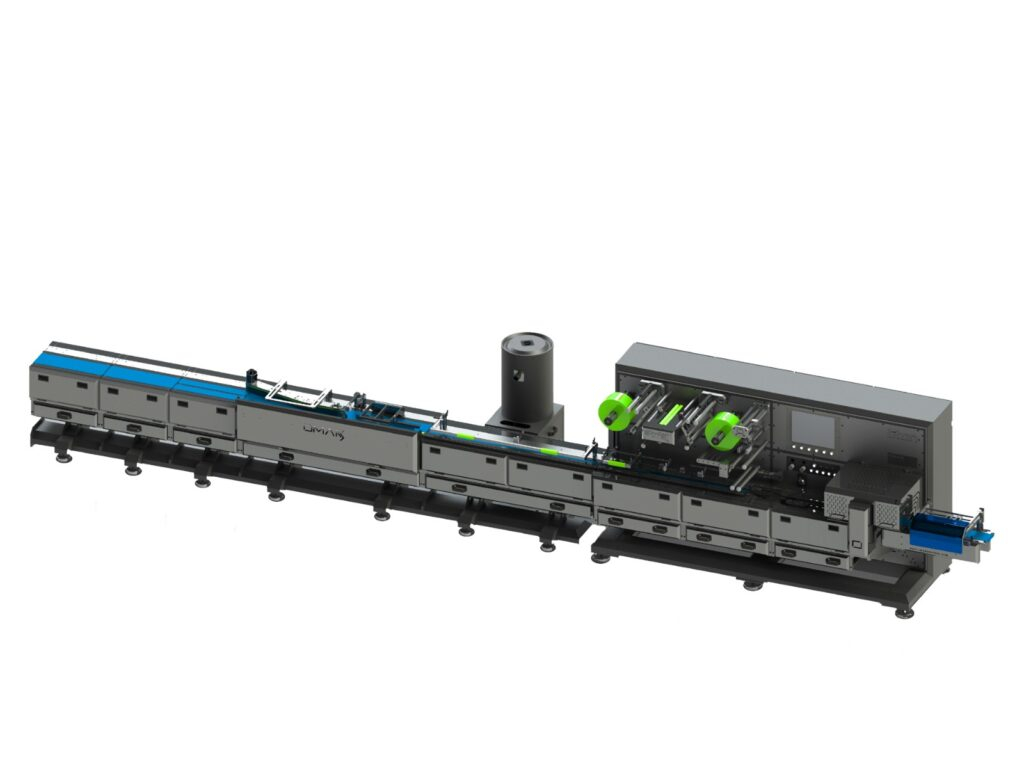

Titan high-speed horizontal flow pack machine with inline feeding system

Flagship · High speed

Titan High-Speed Flow Pack Machine

Titan is a modular, high-speed horizontal packaging machine that reaches up to 700 packs per minute with cold seal film. Full servo control and a high-efficiency feeding unit keep it at full output on high-capacity production lines.

Up to 700 packs per minute cold seal, 200 hot seal
Film width up to 300 mm, reel up to 400 mm
Inline feeding system with cutting and sealing group
Robust construction for long-term, demanding production

Request Titan Details

Feeding · ADS

Automatic Distribution System (ADS)

ADS is a modular system that directs products from the production line into the packaging machine. Servo and asynchronous motors are matched to the product’s stickiness, softness and line width, so connected flow wrappers stay fed at high speed without interruption.

Working width of 300–2,000 mm
Modular structure for different line layouts
Servo and asynchronous drive options
Keeps connected packers running without interruption

Making wafers? Pair ADS with our automatic wafer production line.

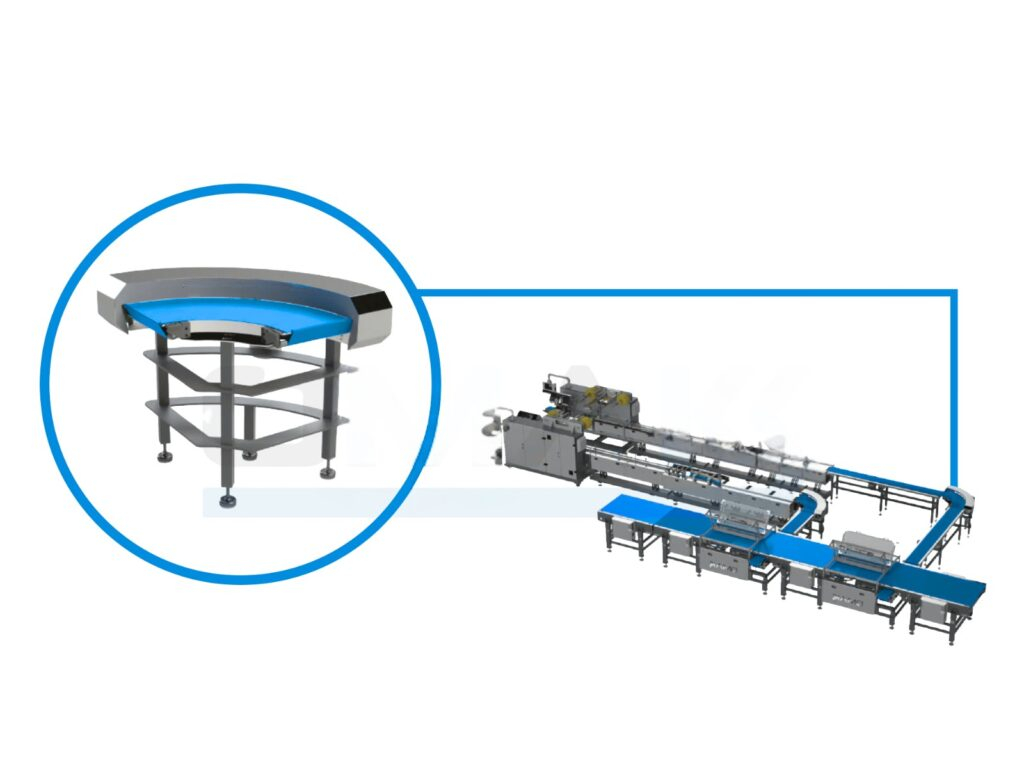

Automatic distribution system ADS feeding products to a flow pack machine

Flow Pack Machine Specifications

Compare the machines side by side. Final capacity depends on the product, the film and the pack size.

Model	Cold seal (packs/min)	Hot seal (packs/min)	Max film width (mm)	Max reel diameter (mm)	Power	Weight (kg)
E-motion MFX	Up to 250	Up to 180	350	340	3 kW	830
E-motion RSI	Up to 120	Up to 120	350	340	3.5 kW	730
E-motion PMJ	20–60	20–60	600	550	5.5 kW	1,100
E-motion Plus	Up to 150	Up to 120	550	600	3 kW	900
E-motion Magazine Feeding	Up to 120	Up to 120	350	340	3.5 kW	1,000
Silver	Up to 400	Up to 200	400	200	7 kW	1,500
Silver On Edge	80–120	80–120	350	340	6 kW	1,500
Silver Pile Pack	180–220 (2×2), 150–180 (2×3)	–	300	400	15 kW	3,700
Titan	Up to 700	Up to 200	300	400	15 kW	1,900

Power data at 380/400 V, 50 Hz; air supply 5.8–6.3 bar. Machine dimensions and electrical options are confirmed in your quotation.

What You Can Pack on a Flow Pack Machine

Flow wrapping suits solid, shaped products that need an airtight, stackable pack. Confectionery and bakery are the core uses; non-uniform shapes, plastic cutlery and light non-food products also run on E-motion machines.

Chocolate-coated bar wrapped in flow pack packaging

Chocolate and Snack Bars

Coated bars, cereal bars and nut snacks wrapped in cold seal or hot seal film.

Nut brittle bar wrapped in flow pack packaging

Brittle and Nut Snacks

Nut brittle, praline bars and similar snack products in sealed flow packs.

Wafers and Biscuits

Wafer fingers, biscuit stacks and cookies. See our automatic wafer production line.

Waffles and sandwich waffles produced for flow pack packaging

Waffles and Baked Snacks

Waffles, sandwich waffles and baked snacks. See our waffle production line.

From Product Trial to First Production, with One Partner

ProTrus supplies the machine, the feeding system and the commissioning support, so responsibility stays with one team.

Product & film review

We start from your product size, film type and target speed.

Machine & feeding design

Model, jaw group, feeding system and options are specified for your line.

Manufacturing & testing

The machine is built and tested before it ships to your plant.

Installation & training

On-site start-up, first production runs and operator training.

Built for hygiene and flexibility. Inline feeding conveyors pack products without direct handling, and servo control keeps film tracking accurate with minimal waste. Compare our FFS packaging machines for cups, thermoforming packaging machines for trays and vacuum packs, and all industrial packaging solutions. Making the product too? Explore our automatic wafer production line and waffle production line.

700

Packs per minute with the Titan

Horizontal flow pack models plus ADS

600 mm

Widest film on the PMJ

CE · ISO 9001

Marked equipment, certified quality processes

Frequently Asked Questions About Flow Pack Machines

Have a question about your packaging line? Ask our packaging engineers.

A flow pack machine, also called a horizontal flow wrapper, wraps products in a continuous tube of film, seals the back and both ends, and cuts each pack free. Products are fed in a line, so they are packed without direct handling, and the sealed pack protects them from air and moisture.

Cold seal film bonds under pressure through a special coating, without heat, which suits heat-sensitive products such as chocolate and allows the highest speeds. Hot seal film is welded by heated jaws. Our machines list both capacities; the Titan, for example, reaches 700 packs per minute cold seal and 200 hot seal.

E-motion models suit entry-level and short-run lines: MFX and RSI for smaller products, PMJ and Plus for wide products, and magazine feeding for biscuits. Silver machines serve industrial lines, Silver Pile Pack handles biscuit stacks, and Titan covers high-speed production. We confirm the model after a product and film review.

Capacity depends on the model, product and film. Cold seal capacities range from 20–60 packs per minute on the PMJ up to 700 on the Titan, and hot seal capacities reach up to 200 packs per minute on the Silver and Titan.

Yes. Machines can run with manual feeding, a 90-degree semi-automatic feeding system, magazine feeding or a fully inline feeding conveyor. The Automatic Distribution System (ADS) distributes products from the production line into the packer for continuous high-speed operation.

Product dimensions and weight, film type and width, target packs per minute, feeding method and your electrical supply. Samples or photos of your product help us select the model and jaw configuration.
